Spann-Boy® TS as belt tensioner

with roller

Characteristics

Steel housing Two pre-tensioned compression springs with 40mm tension distance 44mm adjustment range

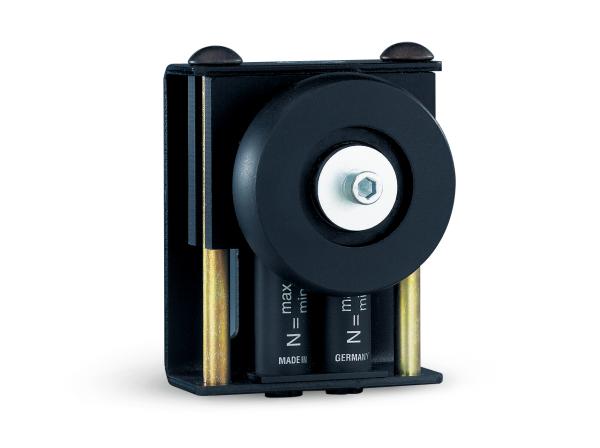

Spann-Boy® TS as belt tensioner - Automatic belt tensioners - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Roller width Profile shape Article ID CAD
20 Cylindrical 281160001
20 Spherical 281160004
20 Flat belt 281160007
20 V-belt 281160010
20 Round belt 281160013
30 Cylindrical 281160002
30 Spherical 281160005
30 Flat belt 281160008
30 V-belt 281160011
30 Round belt 281160014
40 Cylindrical 281160003
40 Spherical 281160006
40 Flat belt 281160009
40 V-belt 281160012
40 Round belt 281160015


Spann-Boy® TS as belt tensioner - Automatic belt tensioners - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

  • 1) Tension distance
  • 2) Elongated hole
