Type CF

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

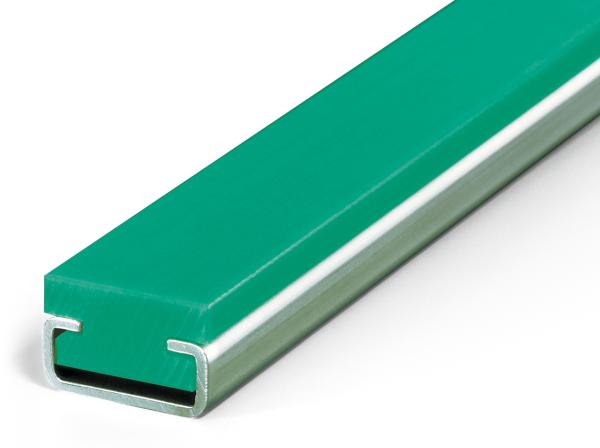

Type CF - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type C profile B1 B2 H Hc h Art.-No. C-Profile Article ID CAD
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C1 20 24 5 6 1 351020001 211010001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C1 20 24 10 11 5.8 351020001 211010002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C3 20 20 10 14 4 351020003 211010003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C3 20 20 14 17 7 351020003 211010004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C3 20 20 16 20 10 351020003 211010005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C5 28 28 10 15 3 351020005 211010006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C5 28 28 14 18 6 351020005 211010007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C9 38 38 12 22 4 351020009 211010008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C9 38 38 18 25 7 351020009 211010009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C12 60 60 20 30 10 351020012 211010010
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C4 50 50 18 20 10 351020004 211010011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C6 80 80 18 20 10 351020006 211010012
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C1 20 24 5 6 1 351060001 211010001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C1 20 24 10 11 5.8 351060001 211010002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C3 20 20 10 14 4 351060003 211010003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C3 20 20 14 17 7 351060003 211010004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C3 20 20 16 20 10 351060003 211010005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C5 28 28 10 15 3 351060005 211010006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C5 28 28 14 18 6 351060005 211010007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C9 38 38 12 22 4 351060009 211010008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C9 38 38 18 25 7 351060009 211010009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C12 60 60 20 30 10 351060012 211010010
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C4 50 50 18 20 10 351060004 211010011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C6 80 80 18 20 10 351060006 211010012
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C1 20 24 5 6 1 351020101 211010001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C1 20 24 10 11 5.8 351020101 211010002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C3 20 20 10 14 4 351020103 211010003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C3 20 20 14 17 7 351020103 211010004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C3 20 20 16 20 10 351020103 211010005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C5 28 28 10 15 3 351020105 211010006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C5 28 28 14 18 6 351020105 211010007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C9 38 38 12 22 4 351020109 211010008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C9 38 38 18 25 7 351020109 211010009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C12 60 60 20 30 10 351020112 211010010
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C4 50 50 18 20 10 351020104 211010011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C6 80 80 18 20 10 351020106 211010012
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C1 20 24 5 6 1 351060101 211010001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C1 20 24 10 11 5.8 351060101 211010002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C3 20 20 10 14 4 351060103 211010003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C3 20 20 14 17 7 351060103 211010004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C3 20 20 16 20 10 351060103 211010005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C5 28 28 10 15 3 351060105 211010006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C5 28 28 14 18 6 351060105 211010007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C9 38 38 12 22 4 351060109 211010008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C9 38 38 18 25 7 351060109 211010009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C12 60 60 20 30 10 351060112 211010010
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C4 50 50 18 20 10 351060104 211010011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C6 80 80 18 20 10 351060106 211010012
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C1 20 24 5 6 1 351090001 211010101
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C1 20 24 10 11 5.8 351090001 211010102
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C3 20 20 10 14 4 351090003 211010103
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C3 20 20 14 17 7 351090003 211010104
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C3 20 20 16 20 10 351090003 211010105
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C5 28 28 10 15 3 351090005 211010106
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C5 28 28 14 18 6 351090005 211010107
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C9 38 38 12 22 4 351090009 211010108
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C9 38 38 18 25 7 351090009 211010109
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C12 60 60 20 30 10 351090012 211010110
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C4 50 50 18 20 10 351090004 211010111
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) CF C6 80 80 18 20 10 351090006 211010112
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C1 20 24 5 6 1 351090101 211010101
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C1 20 24 10 11 5.8 351090101 211010102
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C3 20 20 10 14 4 351090103 211010103
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C3 20 20 14 17 7 351090103 211010104
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C3 20 20 16 20 10 351090103 211010105
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C5 28 28 10 15 3 351090105 211010106
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C5 28 28 14 18 6 351090105 211010107
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C9 38 38 12 22 4 351090109 211010108
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C9 38 38 18 25 7 351090109 211010109
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C12 60 60 20 30 10 351090112 211010110
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C4 50 50 18 20 10 351090104 211010111
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C6 80 80 18 20 10 351090106 211010112
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C1 20 24 5 6 1 351020001 211020001
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C1 20 24 10 11 5.8 351020001 211020002
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C3 20 20 10 14 4 351020003 211020003
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C3 20 20 14 17 7 351020003 211020004
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C3 20 20 16 20 10 351020003 211020005
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C5 28 28 10 15 3 351020005 211020006
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C5 28 28 14 18 6 351020005 211020007
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C9 38 38 12 22 4 351020009 211020008
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C9 38 38 18 25 7 351020009 211020009
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C12 60 60 20 30 10 351020012 211020010
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C4 50 50 18 20 10 351020004 211020011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) CF C6 80 80 18 20 10 351020006 211020012
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C1 20 24 5 6 1 351060001 211020001
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C1 20 24 10 11 5.8 351060001 211020002
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C3 20 20 10 14 4 351060003 211020003
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C3 20 20 14 17 7 351060003 211020004
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C3 20 20 16 20 10 351060003 211020005
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C5 28 28 10 15 3 351060005 211020006
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C5 28 28 14 18 6 351060005 211020007
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C9 38 38 12 22 4 351060009 211020008
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C9 38 38 18 25 7 351060009 211020009
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C12 60 60 20 30 10 351060012 211020010
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C4 50 50 18 20 10 351060004 211020011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) CF C6 80 80 18 20 10 351060006 211020012
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C1 20 24 5 6 1 351020101 211020001
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C1 20 24 10 11 5.8 351020101 211020002
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C3 20 20 10 14 4 351020103 211020003
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C3 20 20 14 17 7 351020103 211020004
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C3 20 20 16 20 10 351020103 211020005
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C5 28 28 10 15 3 351020105 211020006
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C5 28 28 14 18 6 351020105 211020007
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C9 38 38 12 22 4 351020109 211020008
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C9 38 38 18 25 7 351020109 211020009
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C12 60 60 20 30 10 351020112 211020010
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C4 50 50 18 20 10 351020104 211020011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) CF C6 80 80 18 20 10 351020106 211020012
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C1 20 24 5 6 1 351060101 211020001
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C1 20 24 10 11 5.8 351060101 211020002
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C3 20 20 10 14 4 351060103 211020003
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C3 20 20 14 17 7 351060103 211020004
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C3 20 20 16 20 10 351060103 211020005
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C5 28 28 10 15 3 351060105 211020006
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C5 28 28 14 18 6 351060105 211020007
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C9 38 38 12 22 4 351060109 211020008
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C9 38 38 18 25 7 351060109 211020009
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C12 60 60 20 30 10 351060112 211020010
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C4 50 50 18 20 10 351060104 211020011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) CF C6 80 80 18 20 10 351060106 211020012
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C1 20 24 5 6 1 351090001 211020101
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C1 20 24 10 11 5.8 351090001 211020102
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C3 20 20 10 14 4 351090003 211020103
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C3 20 20 14 17 7 351090003 211020104
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C3 20 20 16 20 10 351090003 211020105
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C5 28 28 10 15 3 351090005 211020106
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C5 28 28 14 18 6 351090005 211020107
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C9 38 38 12 22 4 351090009 211020108
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C9 38 38 18 25 7 351090009 211020109
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C12 60 60 20 30 10 351090012 211020110
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C4 50 50 18 20 10 351090004 211020111
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) CF C6 80 80 18 20 10 351090006 211020112
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C1 20 24 5 6 1 351090101 211020101
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C1 20 24 10 11 5.8 351090101 211020102
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C3 20 20 10 14 4 351090103 211020103
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C3 20 20 14 17 7 351090103 211020104
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C3 20 20 16 20 10 351090103 211020105
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C5 28 28 10 15 3 351090105 211020106
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C5 28 28 14 18 6 351090105 211020107
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C9 38 38 12 22 4 351090109 211020108
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C9 38 38 18 25 7 351090109 211020109
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C12 60 60 20 30 10 351090112 211020110
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C4 50 50 18 20 10 351090104 211020111
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) CF C6 80 80 18 20 10 351090106 211020112


Type CF - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
