Curve guides for slat band chains with TAB guide

Your selection

Selected variant

Articles for selection:

Total articles:

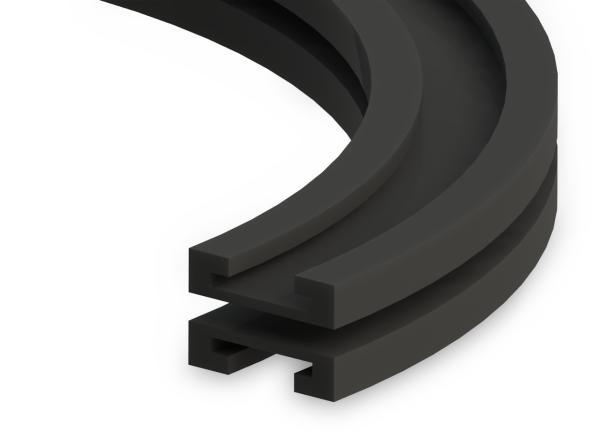

Curve guides for slat band chains with TAB guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type Straight ends (100 mm) For chain type No. of guideways B a R1 b1 b2 H h1 h2 Article ID CAD
Straight ends: Yes 1-track T500/1GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 1 100 90 500 45 70 25 10.6 19 321020076
Straight ends: Yes 1-track T860/1GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 1 100 90 860 45 70 25 10.6 19 321020082
Straight ends: Yes 1-track T610/1GE with SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 1 125 120 610 45 70 25 10.6 19 321020087
Straight ends: Yes 1-track T610/1GE with SS881TAB-K750, SSC8811TAB-K750 1 200 195 610 45 70 25 10.6 19 321020091
Straight ends: Yes 1-track T610/1GE with LF882TAB-K450 1 125 120 610 58 90 32 21 26 321020094
Straight ends: Yes 1-track T610/1GE with LF882TAB-K750 1 200 195 610 58 90 32 21 26 321020097
Straight ends: Yes 1-track T610/1GE with LF882TAB-K1000 1 265 260 610 58 90 32 21 26 321020099
Straight ends: Yes 1-track T610/1GE with LF882TAB-K1200 1 320 310 610 58 90 32 21 26 321020100
Straight ends: Yes 2-track T500/2GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 2 190 90 500 45 70 25 10.6 19 321020077
Straight ends: Yes 2-track T860/2GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 2 190 90 860 45 70 25 10.6 19 321020083
Straight ends: Yes 2-track T610/2GE with SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 2 245 120 610 45 70 25 10.6 19 321020088
Straight ends: Yes 2-track T610/2GE with SS881TAB-K750, SSC8811TAB-K750 2 395 195 610 45 70 25 10.6 19 321020092
Straight ends: Yes 2-track T610/2GE with LF882TAB-K450 2 245 120 610 58 90 32 21 26 321020095
Straight ends: Yes 2-track T610/2GE with LF882TAB-K750 2 395 195 610 58 90 32 21 26 321020098
Straight ends: Yes 3-track T500/3GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 3 280 90 500 45 70 25 10.6 19 321020078
Straight ends: Yes 3-track T860/3GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 3 280 90 860 45 70 25 10.6 19 321020084
Straight ends: Yes 3-track T610/3GE with SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 3 365 120 610 45 70 25 10.6 19 321020089
Straight ends: Yes 3-track T610/3GE with SS881TAB-K750, SSC8811TAB-K750 3 590 195 610 45 70 25 10.6 19 321020093
Straight ends: Yes 3-track T610/3GE with LF882TAB-K450 3 365 120 610 58 90 32 21 26 321020096
Straight ends: Yes 4-track T500/4GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 4 370 90 500 45 70 25 10.6 19 321020079
Straight ends: Yes 4-track T860/4GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 4 370 90 860 45 70 25 10.6 19 321020085
Straight ends: Yes 4-track T610/4GE with SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 4 485 120 610 45 70 25 10.6 19 321020090
Straight ends: Yes 5-track T500/5GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 5 460 90 500 45 70 25 10.6 19 321020080
Straight ends: Yes 5-track T860/5GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 5 460 90 860 45 70 25 10.6 19 321020086
Straight ends: Yes 6-track T500/6GE with SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 6 550 90 500 45 70 25 10.6 19 321020081
Straight ends: No 1-track T500/1 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 1 100 90 500 45 70 25 10.6 19 321020026
Straight ends: No 1-track T860/1 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 1 100 90 860 45 70 25 10.6 19 321020046
Straight ends: No 1-track T610/1 without SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 1 125 120 610 45 70 25 10.6 19 321020032
Straight ends: No 1-track T610/1 without SS881TAB-K750, SSC8811TAB-K750 1 200 195 610 45 70 25 10.6 19 321020036
Straight ends: No 1-track T610/1 without LF882TAB-K450 1 125 120 610 58 90 32 21 26 321020039
Straight ends: No 1-track T610/1 without LF882TAB-K750 1 200 195 610 58 90 32 21 26 321020042
Straight ends: No 1-track T610/1 without LF882TAB-K1000 1 265 260 610 58 90 32 21 26 321020044
Straight ends: No 1-track T610/1 without LF882TAB-K1200 1 320 310 610 58 90 32 21 26 321020045
Straight ends: No 2-track T500/2 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 2 190 90 500 45 70 25 10.6 19 321020027
Straight ends: No 2-track T860/2 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 2 190 90 860 45 70 25 10.6 19 321020047
Straight ends: No 2-track T610/2 without SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 2 245 120 610 45 70 25 10.6 19 321020033
Straight ends: No 2-track T610/2 without SS881TAB-K750, SSC8811TAB-K750 2 395 195 610 45 70 25 10.6 19 321020037
Straight ends: No 2-track T610/2 without LF882TAB-K450 2 245 120 610 58 90 32 21 26 321020040
Straight ends: No 2-track T610/2 without LF882TAB-K750 2 395 195 610 58 90 32 21 26 321020043
Straight ends: No 3-track T500/3 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 3 280 90 500 45 70 25 10.6 19 321020028
Straight ends: No 3-track T860/3 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 3 280 90 860 45 70 25 10.6 19 321020048
Straight ends: No 3-track T610/3 without SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 3 365 120 610 45 70 25 10.6 19 321020034
Straight ends: No 3-track T610/3 without SS881TAB-K750, SSC8811TAB-K750 3 590 195 610 45 70 25 10.6 19 321020038
Straight ends: No 3-track T610/3 without LF882TAB-K450 3 365 120 610 58 90 32 21 26 321020041
Straight ends: No 4-track T500/4 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 4 370 90 500 45 70 25 10.6 19 321020029
Straight ends: No 4-track T860/4 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 4 370 90 860 45 70 25 10.6 19 321020049
Straight ends: No 4-track T610/4 without SS881TAB-K450, SSC881TAB-K450, SSC8811TAB-K450, LF880TAB-K450, D880TAB-K450 4 485 120 610 45 70 25 10.6 19 321020035
Straight ends: No 5-track T500/5 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 5 460 90 500 45 70 25 10.6 19 321020030
Straight ends: No 5-track T860/5 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 5 460 90 860 45 70 25 10.6 19 321020050
Straight ends: No 6-track T500/6 without SS881TAB-K325, SSC881TAB-K325, SSC8811TAB-K325, LF880TAB-K325 6 550 90 500 45 70 25 10.6 19 321020031

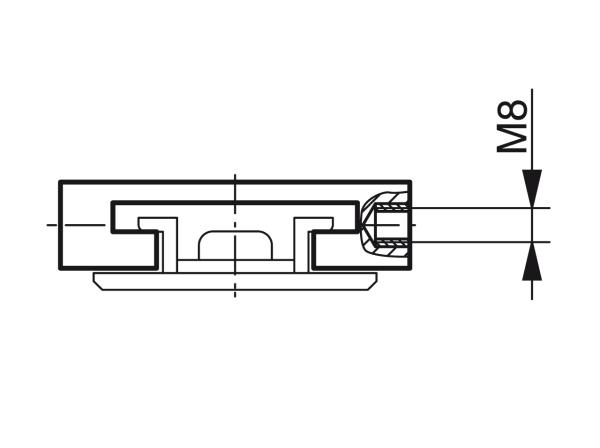

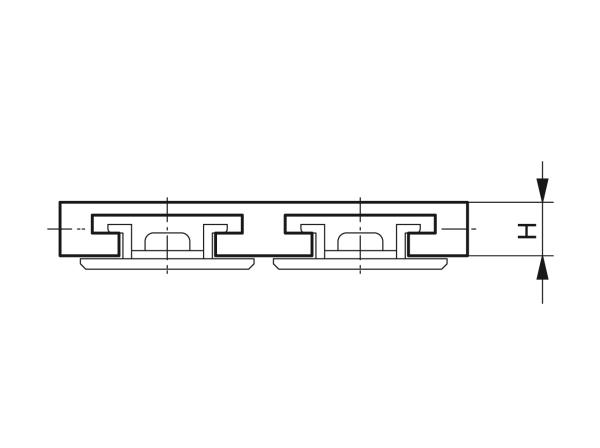

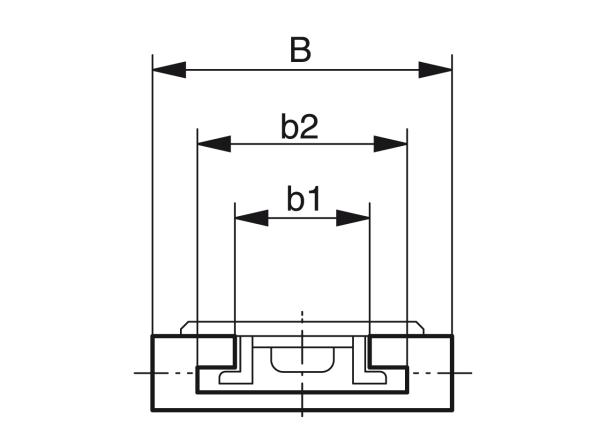

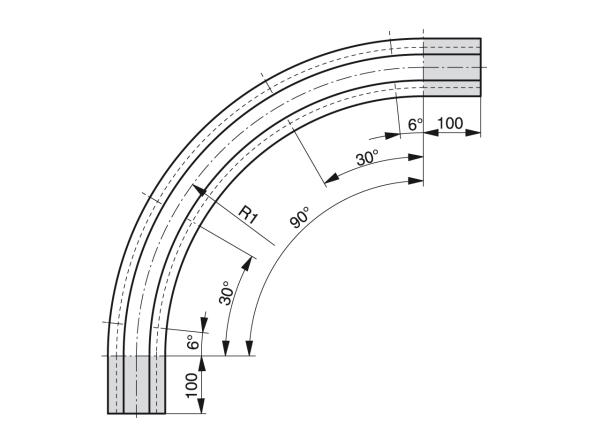

Curve guides for slat band chains with TAB guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1


Curve guides for slat band chains with TAB guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2


Curve guides for slat band chains with TAB guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 3


Curve guides for slat band chains with TAB guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 4


Curve guides for slat band chains with TAB guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 5
