Curve guides for slat band chains with dovetail guide

Your selection

Selected variant

Articles for selection:

Total articles:

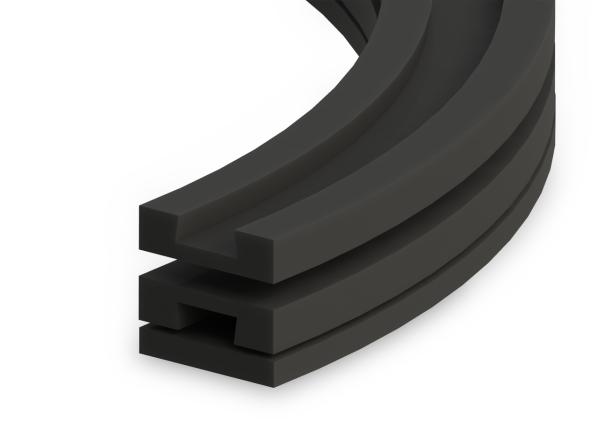

Curve guides for slat band chains with dovetail guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type Straight ends (100 mm) For chain type No. of guideways B a R1 b1 H h1 h2 Article ID CAD
Straight ends: Yes 1-track S500/1GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 1 100 90 500 41.3 25 17 16 321020051
Straight ends: Yes 1-track S860/1GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 1 100 90 860 41.3 25 17 16 321020057
Straight ends: Yes 1-track S610/1GE with SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 1 125 120 610 41.3 25 17 16 321020062
Straight ends: Yes 1-track S610/1GE with SS881-K750, SSC8811-K750 1 200 195 610 41.3 25 17 16 321020066
Straight ends: Yes 1-track S610/1GE with LF882-K450 1 125 120 610 58 27 21 16 321020069
Straight ends: Yes 1-track S610/1GE with LF882-K750 1 200 195 610 58 27 21 16 321020072
Straight ends: Yes 1-track S610/1GE with LF882-K1000 1 265 260 610 58 27 21 16 321020074
Straight ends: Yes 1-track S610/1GE with LF882-K1200 1 320 310 610 58 27 21 16 321020075
Straight ends: Yes 2-track S500/2GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 2 190 90 500 41.3 25 17 16 321020052
Straight ends: Yes 2-track S860/2GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 2 190 90 860 41.3 25 17 16 321020058
Straight ends: Yes 2-track S610/2GE with SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 2 245 120 610 41.3 25 17 16 321020063
Straight ends: Yes 2-track S610/2GE with SS881-K750, SSC8811-K750 2 395 195 610 41.3 25 17 16 321020067
Straight ends: Yes 2-track S610/2GE with LF882-K450 2 245 120 610 58 27 21 16 321020070
Straight ends: Yes 2-track S610/2GE with LF882-K750 2 395 195 610 58 27 21 16 321020073
Straight ends: Yes 3-track S500/3GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 3 280 90 500 41.3 25 17 16 321020053
Straight ends: Yes 3-track S860/3GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 3 280 90 860 41.3 25 17 16 321020059
Straight ends: Yes 3-track S610/3GE with SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 3 365 120 610 41.3 25 17 16 321020064
Straight ends: Yes 3-track S610/3GE with SS881-K750, SSC8811-K750 3 590 195 610 41.3 25 17 16 321020068
Straight ends: Yes 3-track S610/3GE with LF882-K450 3 365 120 610 58 27 21 16 321020071
Straight ends: Yes 4-track S500/4GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 4 370 90 500 41.3 25 17 16 321020054
Straight ends: Yes 4-track S860/4GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 4 370 90 860 41.3 25 17 16 321020060
Straight ends: Yes 4-track S610/4GE with SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 4 485 120 610 41.3 25 17 16 321020065
Straight ends: Yes 5-track S500/5GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 5 460 90 500 41.3 25 17 16 321020055
Straight ends: Yes 5-track S860/5GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 5 460 90 860 41.3 25 17 16 321020061
Straight ends: Yes 6-track S500/6GE with SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 6 550 90 500 41.3 25 17 16 321020056
Straight ends: No 1-track S500/1 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 1 100 90 500 41.3 25 17 16 321020001
Straight ends: No 1-track S860/1 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 1 100 90 860 41.3 25 17 16 321020021
Straight ends: No 1-track S610/1 without SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 1 125 120 610 41.3 25 17 16 321020007
Straight ends: No 1-track S610/1 without SS881-K750, SSC8811-K750 1 200 195 610 41.3 25 17 16 321020011
Straight ends: No 1-track S610/1 without LF882-K450 1 125 120 610 58 27 21 16 321020014
Straight ends: No 1-track S610/1 without LF882-K750 1 200 195 610 58 27 21 16 321020017
Straight ends: No 1-track S610/1 without LF882-K1000 1 265 260 610 58 27 21 16 321020019
Straight ends: No 1-track S610/1 without LF882-K1200 1 320 310 610 58 27 21 16 321020020
Straight ends: No 2-track S500/2 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 2 190 90 500 41.3 25 17 16 321020002
Straight ends: No 2-track S860/2 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 2 190 90 860 41.3 25 17 16 321020022
Straight ends: No 2-track S610/2 without SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 2 245 120 610 41.3 25 17 16 321020008
Straight ends: No 2-track S610/2 without SS881-K750, SSC8811-K750 2 395 195 610 41.3 25 17 16 321020012
Straight ends: No 2-track S610/2 without LF882-K450 2 245 120 610 58 27 21 16 321020015
Straight ends: No 2-track S610/2 without LF882-K750 2 395 195 610 58 27 21 16 321020018
Straight ends: No 3-track S500/3 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 3 280 90 500 41.3 25 17 16 321020003
Straight ends: No 3-track S860/3 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 3 280 90 860 41.3 25 17 16 321020023
Straight ends: No 3-track S610/3 without SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 3 365 120 610 41.3 25 17 16 321020009
Straight ends: No 3-track S610/3 without SS881-K750, SSC8811-K750 3 590 195 610 41.3 25 17 16 321020013
Straight ends: No 3-track S610/3 without LF882-K450 3 365 120 610 58 27 21 16 321020016
Straight ends: No 4-track S500/4 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 4 370 90 500 41.3 25 17 16 321020004
Straight ends: No 4-track S860/4 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 4 370 90 860 41.3 25 17 16 321020024
Straight ends: No 4-track S610/4 without SS881-K450, SSC881-K450, SSC8811-K450, LF880-K450, D880-K450 4 485 120 610 41.3 25 17 16 321020010
Straight ends: No 5-track S500/5 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 5 460 90 500 41.3 25 17 16 321020005
Straight ends: No 5-track S860/5 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 5 460 90 860 41.3 25 17 16 321020025
Straight ends: No 6-track S500/6 without SS881-K325, SSC881-K325, SSC8811-K325, LF880-K325, D880-K325 6 550 90 500 41.3 25 17 16 321020006

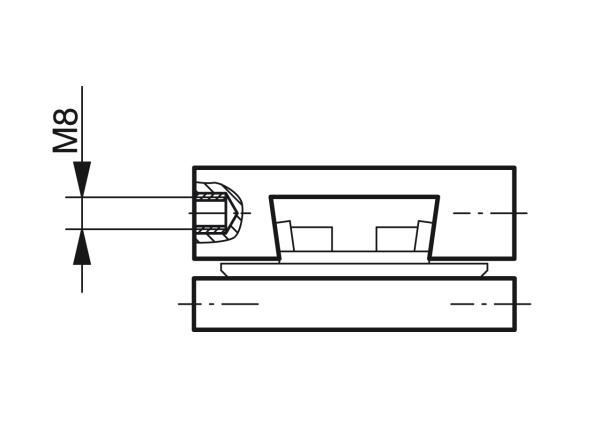

Curve guides for slat band chains with dovetail guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

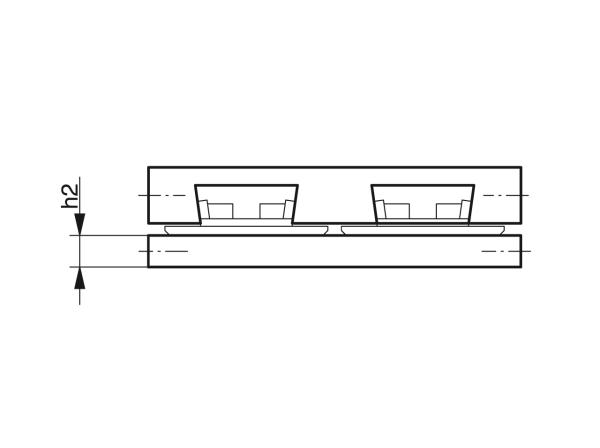

Curve guides for slat band chains with dovetail guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

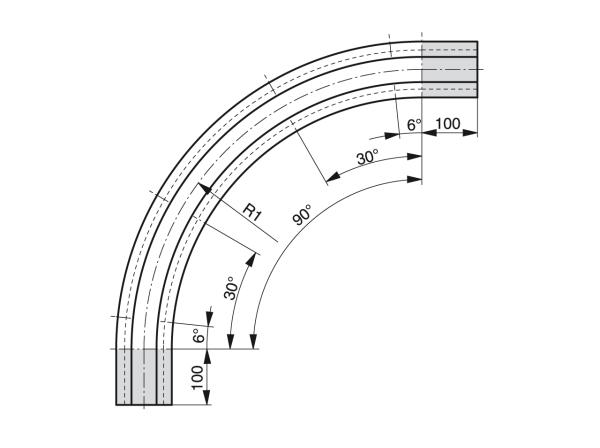

Curve guides for slat band chains with dovetail guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 3


Curve guides for slat band chains with dovetail guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 4


Curve guides for slat band chains with dovetail guide - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 5
