SNAP-TRICK®
The click connection trick
Aluminium profile systems are often used in conveying, production, and assembly machines. It takes a lot of effort to achieve a reliable connection with chain and belt guides. However, SNAP-TRICK ® makes this easy.

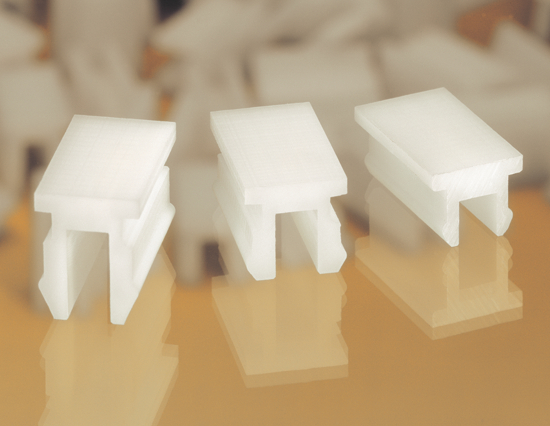

The 'profile with the click' has a variable connection element that is made of Original Material Murytal® C Natural. This enables the combination of Murtfeldt chain and belt guide profiles with any aluminium profile system. SNAP TRICK ® is suitable for use with the system profiles of practically all well-known manufacturers.
The advantages of SNAP-TRICK® profiles
- Click connection provides quick assembly
- No tool required
- Profiles can be replaced by clicking the click connection – there is no need to pull profiles along the entire groove length
- Special SNAP variants enable attachment to flat surfaces without a groove
- The advantages of our standard range can be used without limitation
Materials
- Original Material "S"® Black Antistatic
- We can deliver other slide materials on request
Lengths
- Usually delivered in 2 m lengths
- If required, we can cut shorter parts from our standard lengths or manufacture longer one-piece guides
- Five SNAPs are supplied for every metre of profile length
SNAP for all scenarios
Overview of manufacturer compatibility

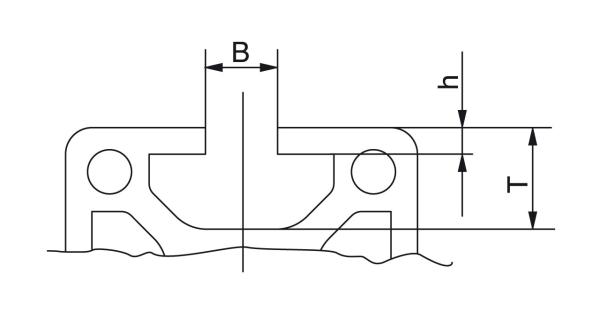

Always state the correct article number for your requirements. You receive 5 SNAPs free-of-charge for each metre of profile length. Regardless of the manufacturer, all SNAPs can be used as long as their B, T, and h dimensions match your groove dimensions.
Article numbers for separate SNAP orders:
See below
Custom orders:
Send us the dimensions of your profile as a CAD drawing and state the profile manufacturer (see sketch). We are also happy to determine the appropriate choice of SNAP on the basis of a sample provided by you.

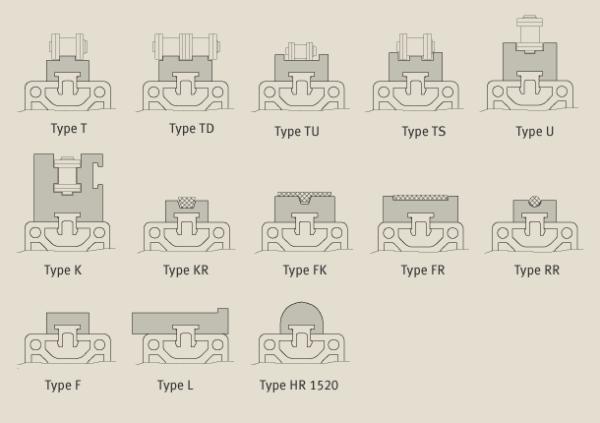

Overview of types for selection

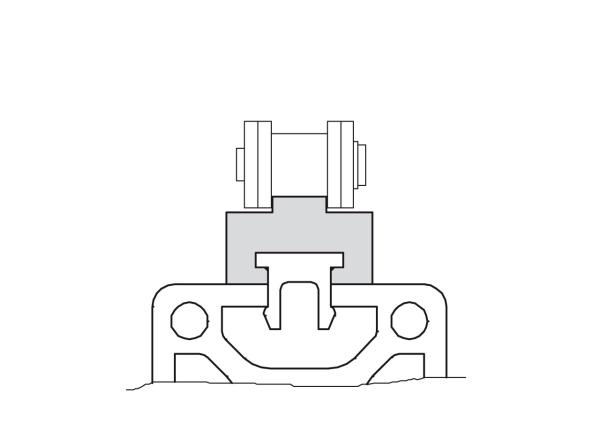

Type T

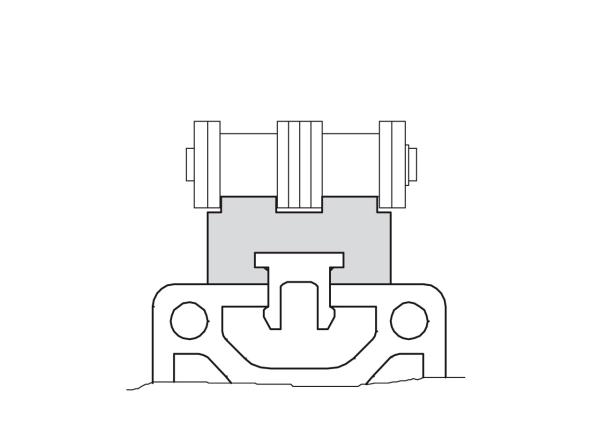

Type TD

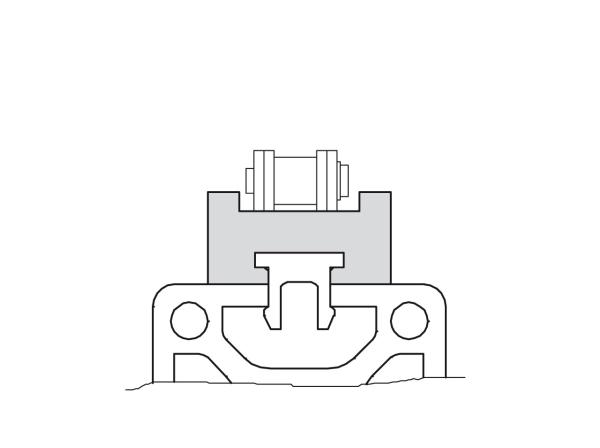

Type TU

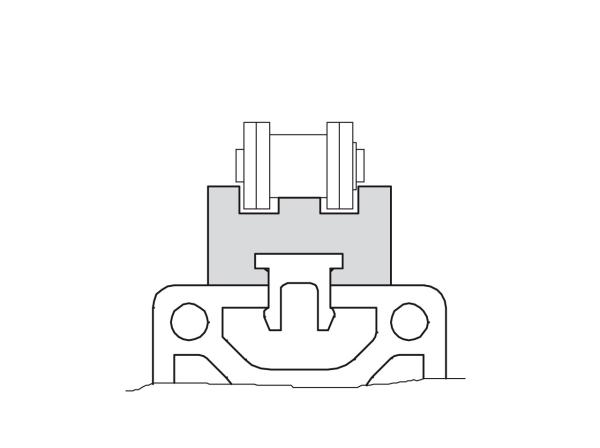

Type TS

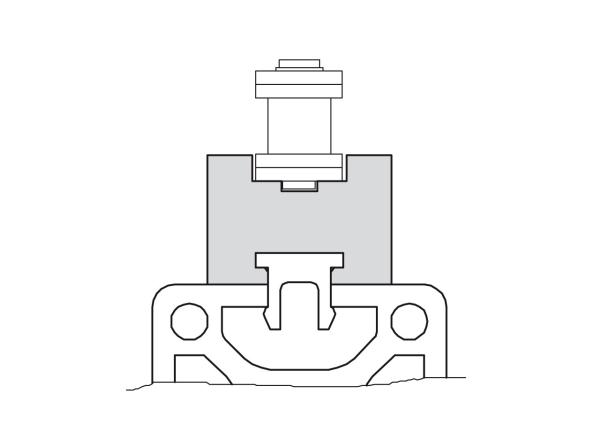

Type U

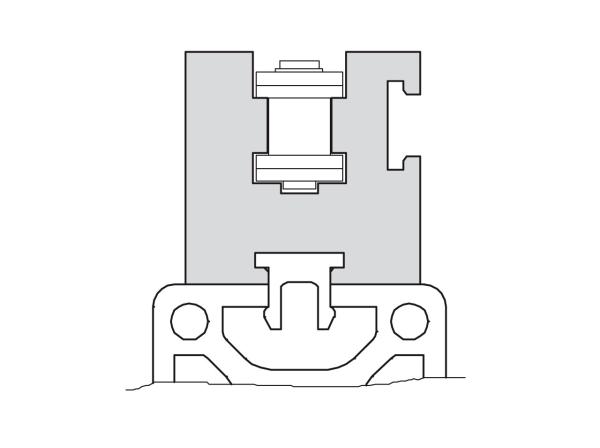

Type K

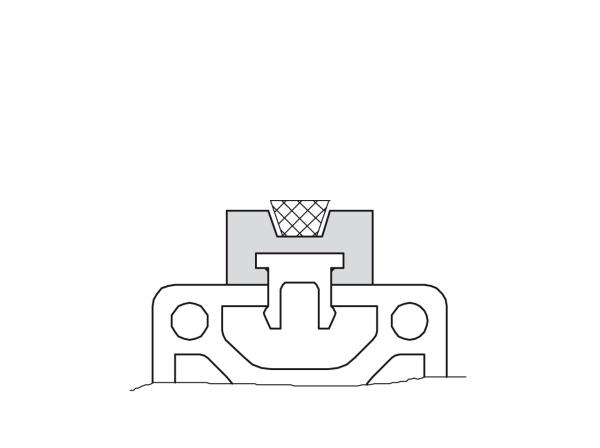

Type KR

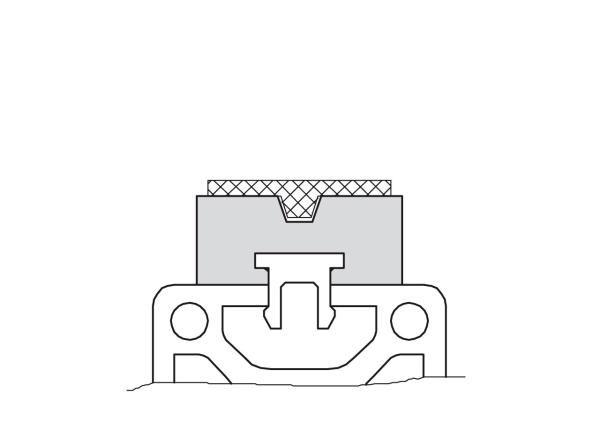

Type FK

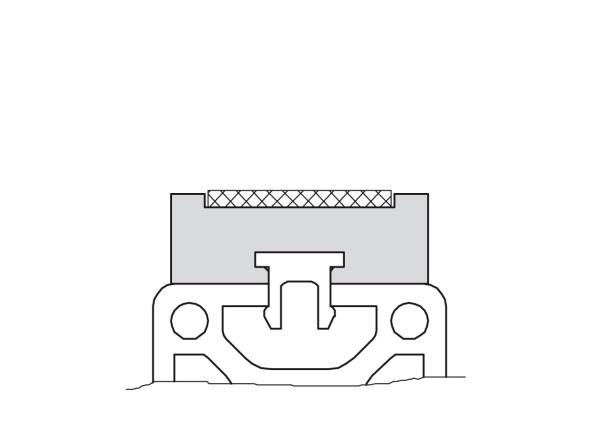

Type FR
Type RR

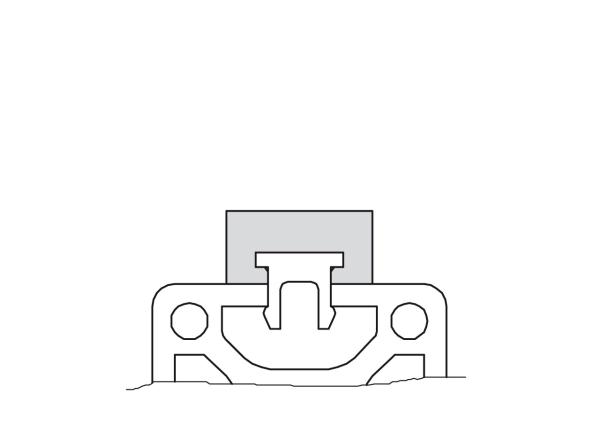

Type F

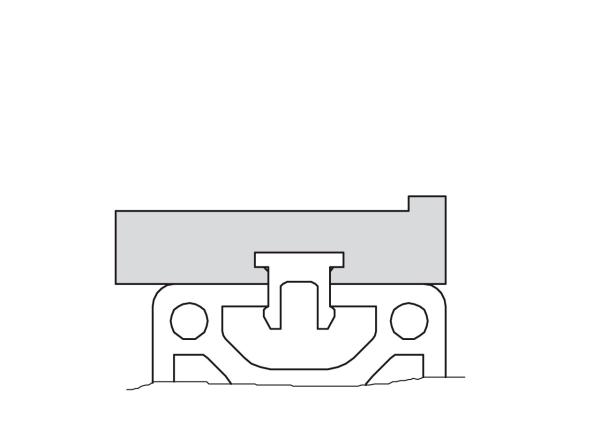

Type L

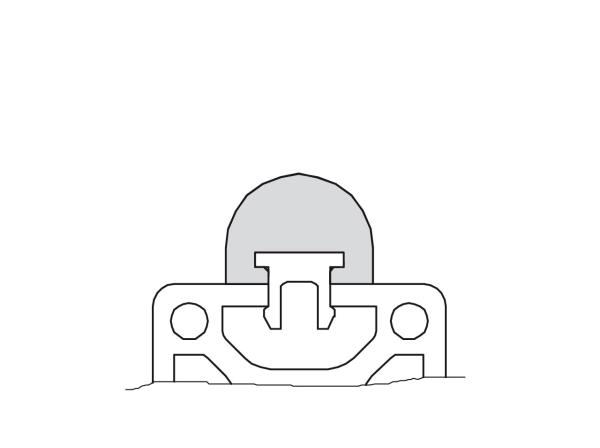

Type HR 1520
Example order
Item 1 221 511 005
2 m chain guides (2,000 mm) for chain 08 B-1 incl. free SNAP S5 (221 539 105)
Item 2 221 530 105
1 bag of 50 SNAP S5 (additional)
