Type U

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

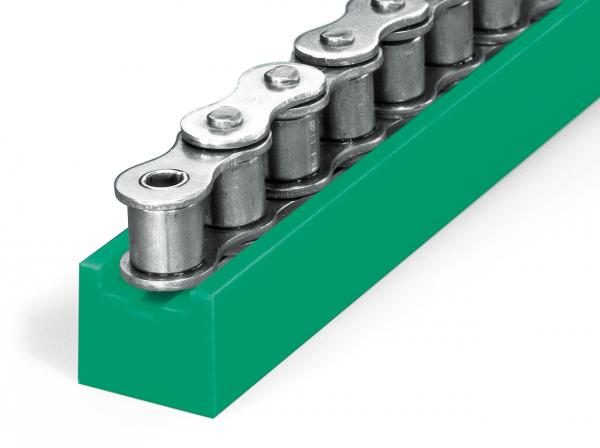

Type U - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Chain no. DIN 8187 Chain dimensions in inches B H d2 g h2 h3 Article ID CAD
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" 15 10 2.9 6.6 1.7 3.1 221150029
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 15 4.5 10 2.7 4.5 221150030
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 15 5 13.2 3.1 5.2 221150031
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 25 15 6.4 16.5 4.2 6.5 221150032
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 20 7.4 19.8 5 7.5 221150033
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 35 20 9.9 26.5 6.3 9.3 221150034
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 40 25 11.9 33.1 8.3 11.7 221150035
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 25 13.9 39.8 9.8 13.4 221150036
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 30 15.9 46.4 11.5 15.6 221150037
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 65 35 17.8 53 13.5 17.8 221150038
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" 15 10 2.9 6.6 1.7 3.1 221160011
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 15 4.5 10 2.7 4.5 221160012
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 15 5 13.2 3.1 5.2 221160013
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 25 15 6.4 16.5 4.2 6.5 221160014
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 20 7.4 19.8 5 7.5 221160015
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 35 20 9.9 26.5 6.3 9.3 221160016
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 40 25 11.9 33.1 8.3 11.7 221160017
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 25 13.9 39.8 9.8 13.4 221160018
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 30 15.9 46.4 11.5 15.6 221160019
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 65 35 17.8 53 13.5 17.8 221160020
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" 15 10 2.9 6.6 1.7 3.1 221150129
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 20 15 4.5 10 2.7 4.5 221150130
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 15 5 13.2 3.1 5.2 221150131
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 25 15 6.4 16.5 4.2 6.5 221150132
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 20 7.4 19.8 5 7.5 221150133
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 35 20 9.9 26.5 6.3 9.3 221150134
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 40 25 11.9 33.1 8.3 11.7 221150135
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 25 13.9 39.8 9.8 13.4 221150136
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 30 15.9 46.4 11.5 15.6 221150137
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 65 35 17.8 53 13.5 17.8 221150138
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221110012
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221110013
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221110014
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221110015
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221110017
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221110016
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 20 15 5 11.8 3.2 4.7 221110018
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221110019
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221110020
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221110021
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221110022
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221110023
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221110024
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221110025
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221110112
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221110113
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221110114
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221110115
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221110117
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221110116
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 20 15 5 11.8 3.2 4.7 221110118
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221110119
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221110120
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221110121
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221110122
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221110123
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221110124
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221110125
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221120012
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221120013
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221120014
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221120015
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221120017
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221120016
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 20 15 5 11.8 3.2 4.7 221120018
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221120019
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221120020
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221120021
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221120022
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221120023
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221120024
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221120025
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 3/8" x 5/32" 20 15 4 9.4 2.8 4.2 221120112
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" 20 15 4 9.4 2.8 4.2 221120113
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" 20 15 5 10.8 2.3 3.8 221120114
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" 25 15 5 12.8 3.5 5 221120115
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 25 15 5 12.8 3.5 5 221120117
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" 25 15 6 15.4 3.6 5.2 221120116
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 20 15 5 11.8 3.2 4.7 221120118
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 25 15 6 15.4 3.6 5 221120119
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 7 17 3.9 5.7 221120120
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 33 25 10 24 8.4 10.6 221120121
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 55 25 11 28 10 12.2 221120122
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 30 16 36.6 13 16 221120123
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 65 30 17 40 16 18 221120124
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 70 30 20 44.6 16 20 221120125

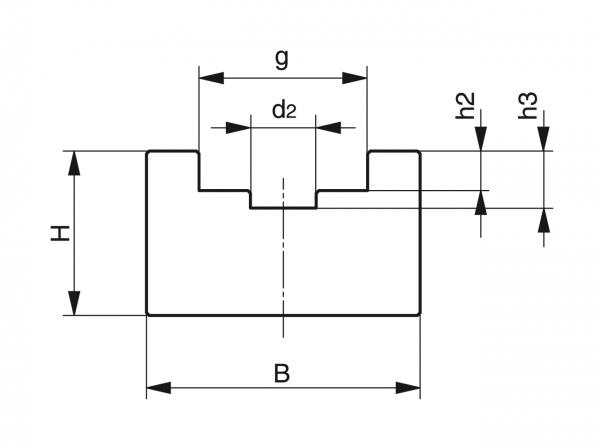

Type U - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
