Type T

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

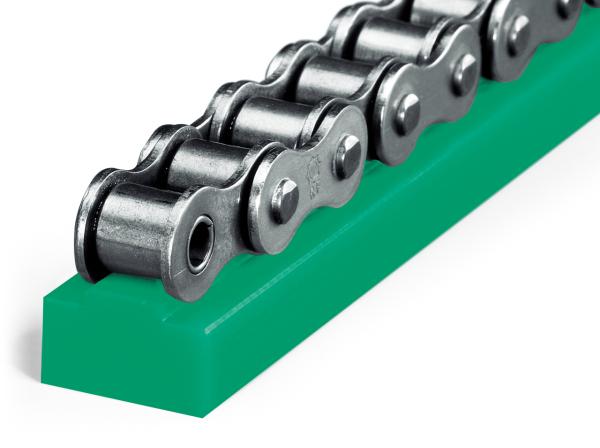

Type T - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Chain no. DIN 8187 Chain dimensions in inches B H b h Article ID CAD
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 10 7.4 2.4 221150003
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 20 10 8.8 2.8 221150004
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 15 11.8 3.5 221150005
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 40 15 14.8 4.7 221150006
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 45 20 17.8 6.4 221150007
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 20 23.7 8 221150008
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 25 23.7 9.7 221150009
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 70 25 29.7 11.3 221150010
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 15 10 4.4 2.3 221060001
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 10 7.4 2.4 221060002
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 20 10 8.8 2.8 221060003
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 15 11.8 3.5 221060004
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 40 15 14.8 4.7 221060005
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 45 20 17.8 6.4 22106006
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 20 23.7 8 221060007
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 25 23.7 9.7 221060008
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 70 25 29.7 11.3 221060009
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" 15 10 4.4 2.3 221150102
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" 20 10 7.4 2.4 221150103
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" 20 10 8.8 2.8 221150104
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" 30 15 11.8 3.5 221150105
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" 40 15 14.8 4.7 221150106
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" 45 20 17.8 6.4 221150107
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" 55 20 23.7 8 221150108
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" 60 25 23.7 9.7 221150109
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" 70 25 29.7 11.3 221150110
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8"x7/32" 15 10 5.4 1.5 221020002
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2"x3/16" 15 10 4.5 1.5 221020003
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 20 10 6.2 2.2 221020004
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 10 7.4 2.2 221020005
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 15 7.4 2.2 221020006
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 20 7.4 2.2 221020007
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 30 7.4 2.2 221020008
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" 20 10 6.2 2.6 221020009
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 10 9.3 2.6 221020010
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 15 9.3 2.6 221020011
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 20 9.3 2.6 221020012
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 30 9.3 2.6 221020013
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 10 11.3 2.4 221020014
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 15 11.3 2.4 221020015
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 11.3 2.4 221020016
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 30 11.3 2.4 221020017
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 15 16 3.5 221020018
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 20 16 3.5 221020019
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 30 16 3.5 221020020
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 45 15 18 4.2 221020021
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 15 24 5.5 221020022
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 75 20 30 6.8 221020023
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 80 20 30 7.7 221020024
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8"x7/32" 15 10 5.4 1.5 221020102
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2"x3/16" 15 10 4.5 1.5 221020103
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" 20 10 6.2 2.2 221020104
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 10 7.4 2.2 221020105
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 15 7.4 2.2 221020106
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 20 7.4 2.2 221020107
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" 20 30 7.4 2.2 221020108
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" 20 10 6.2 2.6 221020109
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 10 9.3 2.6 221020110
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 15 9.3 2.6 221020111
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 20 9.3 2.6 221020112
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" 20 30 9.3 2.6 221020113
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 10 11.3 2.4 221020114
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 15 11.3 2.4 221020115
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 20 11.3 2.4 221020116
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" 25 30 11.3 2.4 221020117
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 15 16 3.5 221020118
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 20 16 3.5 221020119
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm 40 30 16 3.5 221020120
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" 45 15 18 4.2 221020121
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" 60 15 24 5.5 221020122
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm 75 20 30 6.8 221020123
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm 80 20 30 7.7 221020124

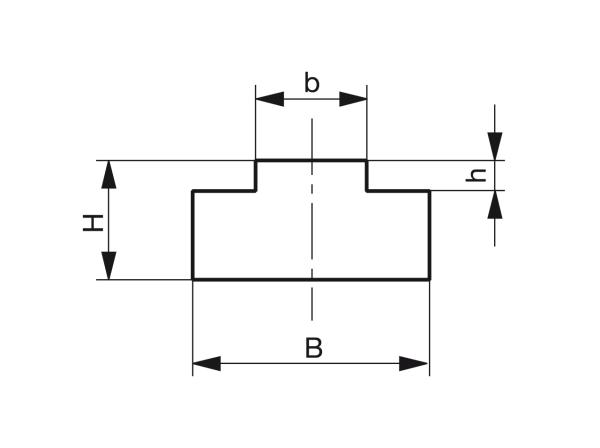

Type T - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
