Type T-Duplex

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

Type T-Duplex - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Chain no. DIN 8187 Chain dimensions in inches B H b h e+b Article ID CAD
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 3/8" x 3/16" 25 10 4.4 2.3 14.5 221150020
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 1/2" x 5/16" 35 10 7.4 2.4 21.8 221150021
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 5/8" x 3/8" 40 10 8.8 2.8 26.9 221150022
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-2 (ASA/JIS 60-2) 3/4" x 1/2" 40 15 11.8 3.5 34.6 221150023
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-2 (ASA/JIS 80-2) 1" x 5/8" 44 15 14.8 4.7 44 221150024
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-2 (ASA/JIS 100-2) 1 1/4" x 3/4" 53 20 17.8 6.4 53 221150025
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-2 (ASA/JIS 120-2) 1 1/2" x 1" 69 20 23.7 8 69 221150026
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-2 (ASA/JIS 140-2) 1 3/4" x 1" 72 25 23.7 9.7 72 221150027
Original Material "S"® Green S profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-2 (ASA/JIS 160-2) 2" x 1 1/4" 88 25 29.7 11.3 88 221150028
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 3/8" x 3/16" 25 10 4.4 2.3 14.5 221060010
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 1/2" x 5/16" 35 10 7.4 2.4 21.8 221060011
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 5/8" x 3/8" 40 10 8.8 2.8 26.9 221060012
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-2 (ASA/JIS 60-2) 3/4" x 1/2" 40 15 11.8 3.5 34.6 221060013
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-2 (ASA/JIS 80-2) 1" x 5/8" 44 15 14.8 4.7 44 221060014
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-2 (ASA/JIS 100-2) 1 1/4" x 3/4" 53 20 17.8 6.4 53 221060015
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-2 (ASA/JIS 120-2) 1 1/2" x 1" 69 20 23.7 8 69 221060016
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-2 (ASA/JIS 140-2) 1 3/4" x 1" 72 25 23.7 9.7 72 221060017
Original Material "S"® Green S profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-2 (ASA/JIS 160-2) 2" x 1 1/4" 88 25 29.7 11.3 88 221060018
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-2 (ASA/JIS 35-2) 3/8" x 3/16" 25 10 4.4 2.3 14.5 221150120
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-2 (ASA/JIS 40-2) 1/2" x 5/16" 35 10 7.4 2.4 21.8 221150121
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-2 (ASA/JIS 50-2) 5/8" x 3/8" 40 10 8.8 2.8 26.9 221150122
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-2 (ASA/JIS 60-2) 3/4" x 1/2" 40 15 11.8 3.5 34.6 221150123
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-2 (ASA/JIS 80-2) 1" x 5/8" 44 15 14.8 4.7 44 221150124
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-2 (ASA/JIS 100-2) 1 1/4" x 3/4" 53 20 17.8 6.4 53 221150125
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-2 (ASA/JIS 120-2) 1 1/2" x 1" 69 20 23.7 8 69 221150126
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-2 (ASA/JIS 140-2) 1 3/4" x 1" 72 25 23.7 9.7 72 221150127
Original Material "S"® Green S profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-2 (ASA/JIS 160-2) 2" x 1 1/4" 88 25 29.7 11.3 88 221150128
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.3 1.5 15.6 221010025
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221010026
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221010027
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221010028
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221010029
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221010030
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221010031
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221010032
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221010033
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221010034
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221010035
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221010036
Original Material "S"® Green S profile (2,000mm) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221010037
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.4 1.5 15.6 221010125
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221010126
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221010127
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221010128
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221010129
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221010130
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221010131
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221010132
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221010133
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221010134
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221010135
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221010136
Original Material "S"® Green S profile (fixed length) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221010137
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.4 1.5 15.6 221020025
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221020026
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221020027
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221020028
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221020029
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221020030
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221020031
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221020032
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221020033
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221020034
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221020035
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221020036
Material "S"® 1000 S profile (2,000mm) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221020037
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 06B-2 3/8" x 7/32" 25 10 5.4 1.5 15.6 221020125
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 10 7.2 2.2 21.2 221020126
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 15 7.2 2.2 21.2 221020127
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 20 7.2 2.2 21.2 221020128
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 08B-2 1/2" x 5/16" 35 30 7.2 2.2 21.2 221020129
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 10B-2 5/8" x 3/8" 40 10 9 2.6 25.6 221020130
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 15 10.9 2.4 30.4 221020131
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 12B-2 3/4" x 7/16" 45 10 10.9 2.4 30.4 221020132
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 16B-2 1" x 17 mm 47.8 15 15.8 3.5 47.8 221020133
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 20B-2 1 1/4" x 3/4" 54.7 15 18.2 4.2 54.7 221020134
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 24B-2 1 1/2" x 1" 72 20 23.6 5.5 72 221020135
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 28B-2 1 3/4" x 31 mm 88.4 25 28.8 6.8 88.4 221020136
Material "S"® 1000 S profile (fixed length) DIN 8187 DIN 8187 - 32B-2 2" x 31 mm 87.4 30 28.8 7.7 87.4 221020137

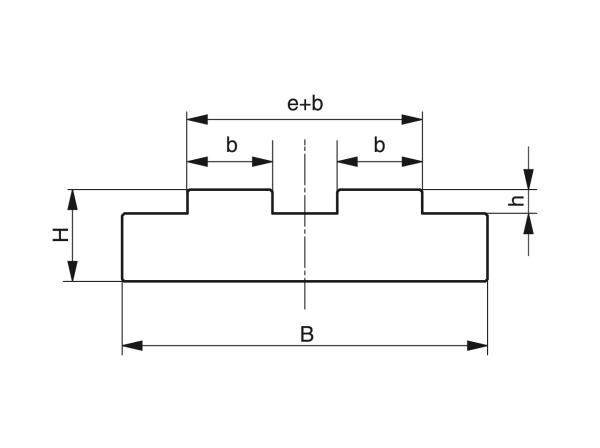

Type T-Duplex - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

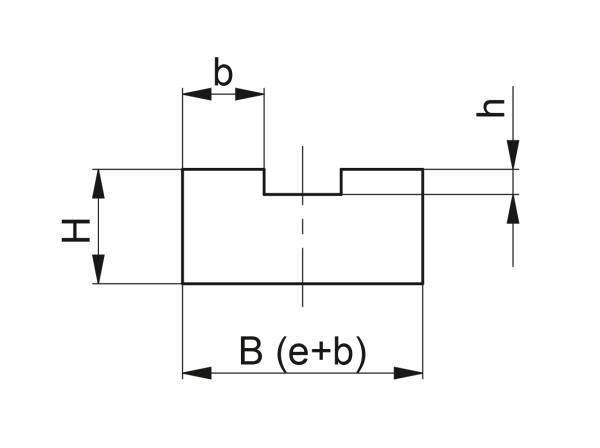

Type T-Duplex - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

  • from 16B-2
