Type CU

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

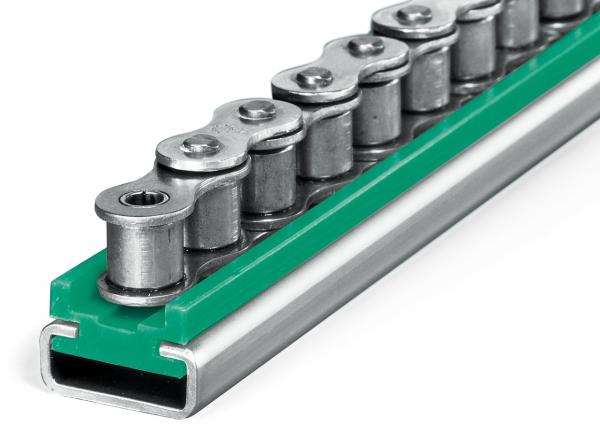

Type CU - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

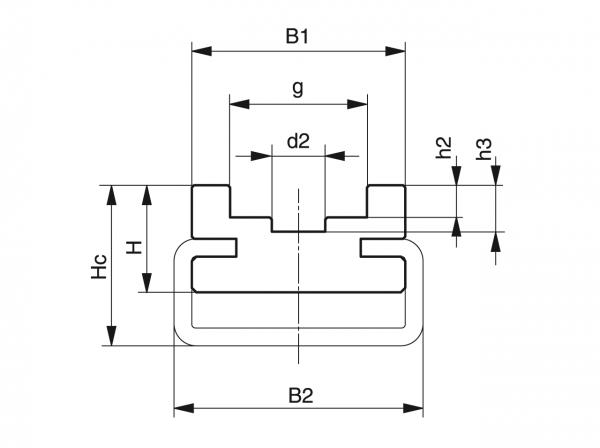

Chain no. DIN 8187 Chain dimensions in inches C profile B1 B2 H Hc d2 g h2 h3 Art.-No. C-Profile Article ID CAD
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351020003 221350029
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351020003 221350030
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351020003 221350031
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351020003 221350032
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351020005 221350033
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351020005 221350034
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351020009 221350035
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351020009 221350036
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351020012 221350037
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351020012 221350038
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351060003 221350029
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351060003 221350030
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351060003 221350031
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351060003 221350032
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351060005 221350033
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351060005 221350034
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351060009 221350035
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351060009 221350036
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351060012 221350037
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351060012 221350038
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351120003 221360021
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351120003 221360022
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351120003 221360023
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351120003 221360024
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351120005 221360025
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351120005 221360026
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351120009 221360027
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351120009 221360028
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351120012 221360029
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351120012 221360030
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351090003 221350129
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351090003 221350130
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351090003 221350131
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351090003 221350132
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351090005 221350133
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351090005 221350134
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351090009 221350135
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351090009 221350136
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351090012 221350137
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351090012 221350138
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351020103 221350029
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351020103 221350030
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351020103 221350031
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351020103 221350032
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351020105 221350033
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351020105 221350034
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351020109 221350035
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351020109 221350036
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351020112 221350037
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351020112 221350038
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351060103 221350029
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351060103 221350030
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351060103 221350031
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351060103 221350032
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351060105 221350033
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351060105 221350034
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351060109 221350035
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351060109 221350036
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351060112 221350037
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351060112 221350038
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351120103 221360021
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351120103 221360022
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351120103 221360023
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351120103 221360024
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351120105 221360025
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351120105 221360026
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351120109 221360027
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351120109 221360028
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351120112 221360029
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351120112 221360030
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 04C-1 (ASA/JIS 25) 1/4" x 1/8" C3 17 20 12 15 2.9 6.6 1.7 3.1 351090103 221350129
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 14 18 4.5 10 2.7 4.5 351090103 221350130
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 20 20 14 18 5 13.2 3.1 5.2 351090103 221350131
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 25 20 16 20 6.4 16.5 4.2 6.5 351090103 221350132
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 30 28 18 22 7.4 19.8 5 7.5 351090105 221350133
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 35 28 20 25 9.9 26.5 6.3 9.3 351090105 221350134
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 40 38 27 35 11.9 33.1 8.3 11.7 351090109 221350135
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 55 38 30 37 13.9 39.8 9.8 13.4 351090109 221350136
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 60 60 30 40 15.9 46.4 11.5 15.6 351090112 221350137
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 65 60 35 42 17.8 53 13.5 17.8 351090112 221350138
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020003 221310011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020003 221310013
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351020003 221310015
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351020005 221310017
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351020005 221310019
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351020001 221310012
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351020005 221310021
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351020005 221310014
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351020005 221310016
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351020009 221310018
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351020012 221310020
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351020012 221310022
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351020012 221310023
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351020012 221310024
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060003 221310011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060003 221310013
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351060003 221310015
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351060005 221310017
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351060005 221310019
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351060001 221310012
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351060005 221310021
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351060005 221310014
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351060005 221310016
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351060009 221310018
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351060012 221310020
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351060012 221310022
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351060012 221310023
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351060012 221310024
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020103 221310011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020103 221310013
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351020103 221310015
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351020105 221310017
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351020105 221310019
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351020101 221310012
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351020105 221310021
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351020105 221310014
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351020105 221310016
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351020109 221310018
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351020112 221310020
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351020112 221310022
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351020112 221310023
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351020112 221310024
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060103 221310011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060103 221310013
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351060103 221310015
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351060105 221310017
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351060105 221310019
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351060101 221310012
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351060105 221310021
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351060105 221310014
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351060105 221310016
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351060109 221310018
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351060112 221310020
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351060112 221310022
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351060112 221310023
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351060112 221310024
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090003 221310111
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090003 221310113
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351090003 221310115
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351090005 221310117
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351090005 221310119
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351090001 221310112
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351090005 221310121
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351090005 221310114
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351090005 221310116
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351090009 221310118
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351090012 221310120
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351090012 221310122
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351090012 221310123
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351090012 221310124
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090103 221310111
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090103 221310113
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351090103 221310115
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351090105 221310117
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351090105 221310119
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351090101 221310112
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351090105 221310121
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351090105 221310114
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351090105 221310116
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351090109 221310118
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351090112 221310120
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351090112 221310122
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351090112 221310123
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351090112 221310124
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020003 221320011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020003 221320013
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351020003 221320015
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351020005 221320017
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351020005 221320019
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351020001 221320012
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351020005 221320021
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351020005 221320014
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351020005 221320016
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351020009 221320018
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351020012 221320020
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351020012 221320022
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351020012 221320023
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351020012 221320024
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060003 221320011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060003 221320013
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351060003 221320015
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351060005 221320017
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351060005 221320019
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351060001 221320012
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351060005 221320021
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351060005 221320014
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351060005 221320016
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351060009 221320018
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351060012 221320020
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351060012 221320022
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351060012 221320023
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351060012 221320024
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020103 221320011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351020103 221320013
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351020103 221320015
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351020105 221320017
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351020105 221320019
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351020101 221320012
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351020105 221320021
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351020105 221320014
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351020105 221320016
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351020109 221320018
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351020112 221320020
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351020112 221320022
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351020112 221320023
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351020112 221320024
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060103 221320011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351060103 221320013
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351060103 221320015
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351060105 221320017
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351060105 221320019
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351060101 221320012
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351060105 221320021
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351060105 221320014
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351060105 221320016
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351060109 221320018
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351060112 221320020
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351060112 221320022
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351060112 221320023
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351060112 221320024
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090003 221320111
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090003 221320113
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351090003 221320115
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351090005 221320117
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351090005 221320119
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351090001 221320112
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351090005 221320121
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351090005 221320114
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351090005 221320116
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351090009 221320118
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351090012 221320120
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351090012 221320122
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351090012 221320123
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351090012 221320124
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090103 221320111
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 14 17 4 9.4 2.8 4.2 351090103 221320113
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 14 17 5 10.8 2.3 3.8 351090103 221320115
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C5 28 28 14 18 5 11.8 3.2 4.7 351090105 221320117
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C5 28 28 14 18 5 12.8 3.5 5 351090105 221320119
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 5 12.8 3.5 5 351090101 221320112
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C5 24 28 12 18 6 15.4 3.6 5.2 351090105 221320121
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C5 24 28 12 18 6 15.4 3.6 5 351090105 221320114
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 12 18 7 17 3.9 5.7 351090105 221320116
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 33 38 20 30 10 24 8.4 10.6 351090109 221320118
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 25 35 11 28 10 12.2 351090112 221320120
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 30 40 16 36.6 13 16 351090112 221320122
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 65 60 38 45 17 40 16 18 351090112 221320123
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 38 45 20 44.6 16 20 351090112 221320124


Type CU - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
