Type CT

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

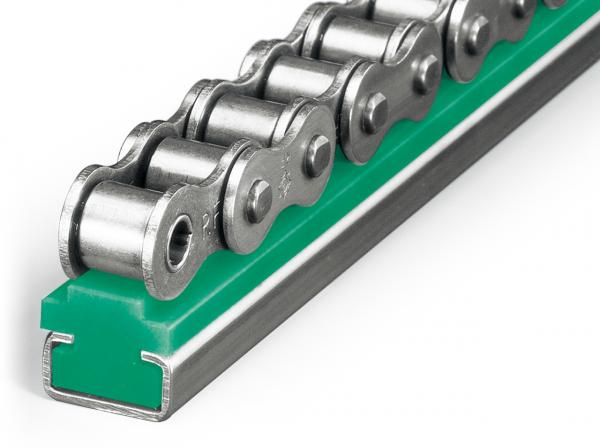

Type CT - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

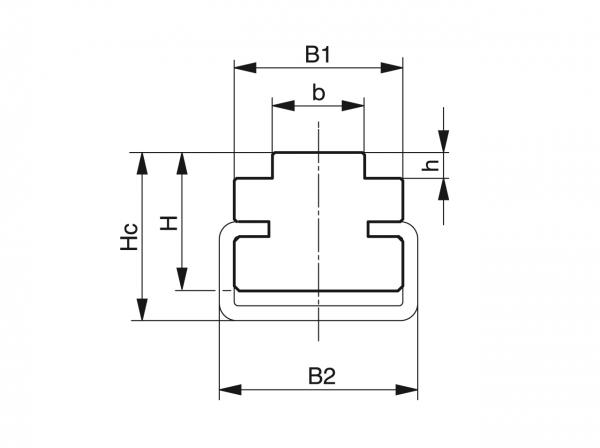

Chain no. DIN 8187 Chain dimensions in inches C profile B1 B2 H Hc b h Art.-No. C-Profile Article ID CAD
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351020003 221350002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351020003 221350003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351020003 221350004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351020005 221350005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351020005 221350006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351020005 221350007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351020009 221350008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351020009 221350009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351020012 221350110
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351060003 221350002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351060003 221350003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351060003 221350004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351060005 221350005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351060005 221350006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351060005 221350007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351060009 221350008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351060009 221350009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351060012 221350110
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351120003 221260001
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351120003 221260002
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351120003 221260003
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351120005 221260004
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351120005 221260005
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351120005 221260006
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351120009 221260007
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351120009 221260008
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351120012 221260009
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351090003 221350102
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351090003 221350103
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351090003 221350104
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351090005 221350105
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351090005 221350106
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351090005 221350107
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351090009 221350108
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351090009 221350109
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351090012 221350110
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351020103 221350002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351020103 221350003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351020103 221350004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351020105 221350005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351020105 221350006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351020105 221350007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351020109 221350008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351020109 221350009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351020112 221350110
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351060103 221350002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351060103 221350003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351060103 221350004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351060105 221350005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351060105 221350006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351060105 221350007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351060109 221350008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351060109 221350009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351060112 221350110
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351120103 221260001
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351120103 221260002
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351120103 221260003
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351120105 221260004
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351120105 221260005
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351120105 221260006
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351120109 221260007
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351120109 221260008
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351120112 221260009
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 17 20 14 17 4.4 2.3 351090103 221350102
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 17 20 14 17 7.4 2.4 351090103 221350103
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C3 17 20 14 17 8.8 2.8 351090103 221350104
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 24 28 14 20 11.8 3.5 351090105 221350105
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C5 24 28 14 20 14.8 4.7 351090105 221350106
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C5 24 28 18 23 17.8 6.4 351090105 221350107
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C9 33 38 22 30 23.7 8 351090109 221350108
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C9 33 38 25 32 23.7 9.7 351090109 221350109
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 55 60 30 40 29.7 11.3 351090112 221350110
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351020003 221210015
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351020003 221210002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351020003 221210003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351020001 221210001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351020003 221210004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351020003 221210005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351020003 221210006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351020003 221210007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351020005 221210008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351020005 221210009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351020005 221210010
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351020009 221210011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351020009 221210012
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351020009 221210013
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351020012 221210014
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351060003 221210015
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351060003 221210002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351060003 221210003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351060001 221210001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351060003 221210004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351060003 221210005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351060003 221210006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351060003 221210007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351060005 221210008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351060005 221210009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351060005 221210010
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351060009 221210011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351060009 221210012
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351060009 221210013
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351060012 221210014
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351020103 221210015
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351020103 221210002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351020103 221210003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351020101 221210001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351020103 221210004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351020103 221210005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351020103 221210006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351020103 221210007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351020105 221210008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351020105 221210009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351020105 221210010
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351020109 221210011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351020109 221210012
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351020109 221210013
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351020112 221210014
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351060103 221210015
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351060103 221210002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351060103 221210003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351060101 221210001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351060103 221210004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351060103 221210005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351060103 221210006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351060103 221210007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351060105 221210008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351060105 221210009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351060105 221210010
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351060109 221210011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351060109 221210012
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351060109 221210013
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351060112 221210014
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351090003 221210115
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351090003 221210102
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351090003 221210103
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351090001 221210101
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351090003 221210104
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351090003 221210105
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351090003 221210106
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351090003 221210107
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351090005 221210108
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351090005 221210109
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351090005 221210110
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351090009 221210111
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351090009 221210112
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351090009 221210113
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351090012 221210114
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351090103 221210115
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351090103 221210102
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351090103 221210103
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351090101 221210101
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351090103 221210104
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351090103 221210105
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351090103 221210106
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351090103 221210107
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351090105 221210108
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351090105 221210109
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351090105 221210110
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351090109 221210111
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351090109 221210112
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351090109 221210113
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351090112 221210114
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351020003 221220015
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351020003 221220002
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351020003 221220003
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351020001 221220001
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351020003 221220004
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351020003 221220005
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351020003 221220006
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351020003 221220007
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351020005 221220008
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351020005 221220009
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351020005 221220010
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351020009 221220011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351020009 221220012
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351020009 221220013
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351020012 221220014
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351060003 221220015
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351060003 221220002
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351060003 221220003
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351060001 221220001
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351060003 221220004
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351060003 221220005
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351060003 221220006
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351060003 221220007
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351060005 221220008
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351060005 221220009
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351060005 221220010
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351060009 221220011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351060009 221220012
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351060009 221220013
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351060012 221220014
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351020103 221220015
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351020103 221220002
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351020103 221220003
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351020101 221220001
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351020103 221220004
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351020103 221220005
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351020103 221220006
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351020103 221220007
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351020105 221220008
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351020105 221220009
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351020105 221220010
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351020109 221220011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351020109 221220012
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351020109 221220013
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351020112 221220014
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351060103 221220015
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351060103 221220002
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351060103 221220003
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351060101 221220001
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351060103 221220004
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351060103 221220005
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351060103 221220006
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351060103 221220007
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351060105 221220008
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351060105 221220009
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351060105 221220010
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351060109 221220011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351060109 221220012
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351060109 221220013
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351060112 221220014
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351090003 221220115
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351090003 221220102
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351090003 221220103
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351090001 221220101
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351090003 221220104
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351090003 221220105
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351090003 221220106
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351090003 221220107
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351090005 221220108
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351090005 221220109
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351090005 221220110
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351090009 221220111
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351090009 221220112
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351090009 221220113
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351090012 221220114
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 17 20 14 17 5.4 1.5 351090103 221220115
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 17 20 14 17 4.5 1.5 351090103 221220102
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C3 17 20 14 17 6.2 2.2 351090103 221220103
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C1 20 24 10 11 7.4 2.2 351090101 221220101
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C3 17 20 14 17 7.4 2.2 351090103 221220104
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 5/8" x 1/4" C3 17 20 14 17 6.2 2.6 351090103 221220105
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C3 17 20 14 17 9.3 2.6 351090103 221220106
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C3 20 20 14 17 11.3 2.4 351090103 221220107
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C5 24 28 14 18 11.3 2.4 351090105 221220108
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C5 24 28 14 18 16 3.5 351090105 221220109
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C5 28 28 14 18 18 4.2 351090105 221220110
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C9 33 38 23 30 24 5.5 351090109 221220111
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C9 38 38 23 30 30 6.8 351090109 221220112
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C9 38 38 23 30 30 7.7 351090109 221220113
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 60 60 25 35 30 7.7 351090112 221220114


Type CT - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
