Type CT-Triplex

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

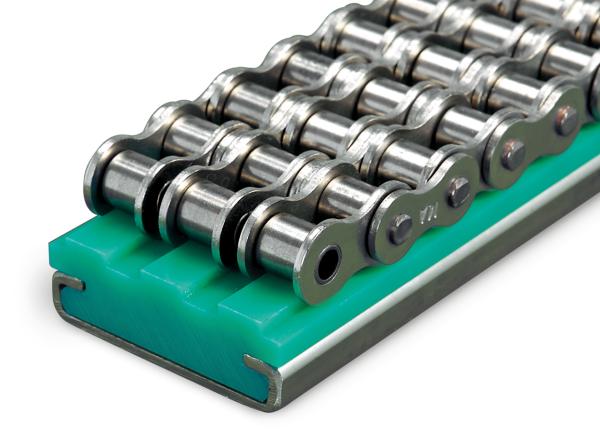

Type CT-Triplex - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Chain no. DIN 8187 Chain dimensions in inches C profile B1 B2 H Hc b h 2e+b Art.-No. C-Profile Article ID CAD
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020005 221210023
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020005 221210024
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020004 221210025
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020004 221210026
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020006 221210027
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020006 221210028
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060005 221210023
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060005 221210024
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060004 221210025
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060004 221210026
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060006 221210027
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060006 221210028
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020105 221210023
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020105 221210024
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020104 221210025
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020104 221210026
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020106 221210027
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020106 221210028
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060105 221210023
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060105 221210024
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060104 221210025
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060104 221210026
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060106 221210027
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060106 221210028
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090005 221210123
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090005 221210124
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090004 221210125
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090004 221210126
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090006 221210127
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090006 221210128
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090105 221210123
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090105 221210124
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090104 221210125
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090104 221210126
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090106 221210127
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090106 221210128
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020005 221220023
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020005 221220024
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020004 221220025
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020004 221220026
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020006 221220027
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020006 221220028
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060005 221220023
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060005 221220024
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060004 221220025
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060004 221220026
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060006 221220027
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060006 221220028
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351020105 221220023
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351020105 221220024
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351020104 221220025
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351020104 221220026
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351020106 221220027
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351020106 221220028
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351060105 221220023
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351060105 221220024
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351060104 221220025
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351060104 221220026
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351060106 221220027
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351060106 221220028
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090005 221220123
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090005 221220124
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090004 221220125
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090004 221220126
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090006 221220127
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090006 221220128
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 06B-3 3/8" x 7/32" C5 30 28 15 20 5.3 1.5 25.9 351090105 221220123
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 08B-3 1/2" x 5/16" C5 34.9 28 15 20 7.1 2.2 34.9 351090105 221220124
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 10B-3 5/8" x 3/8" C4 50 50 15 17 8.9 2.6 42.1 351090104 221220125
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 12B-3 3/4" x 7/16" C4 49.7 50 18 20 10.7 2.4 49.7 351090104 221220126
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 16B-3 1" x 17 mm C6 79.5 80 20 22 15.7 3.5 79.5 351090106 221220127
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) 20B-3 1 1/4" x 3/4" C6 91 80 20 22 18 4.2 91 351090106 221220128

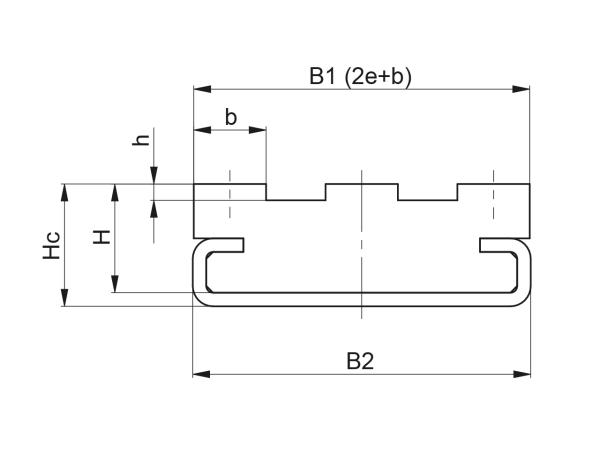

Type CT-Triplex - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

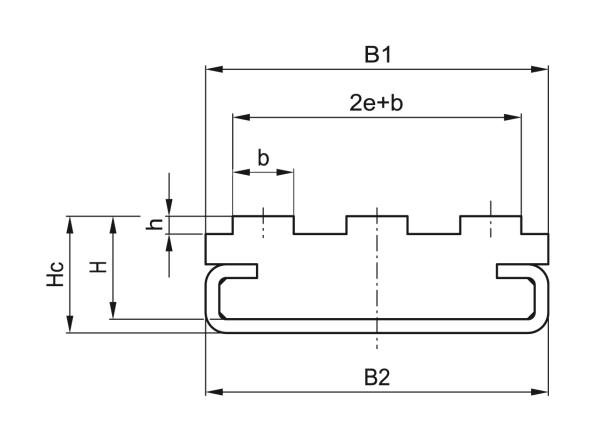

Type CT-Triplex - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

  • from 12B-3 to 20B-3
