Type CK

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

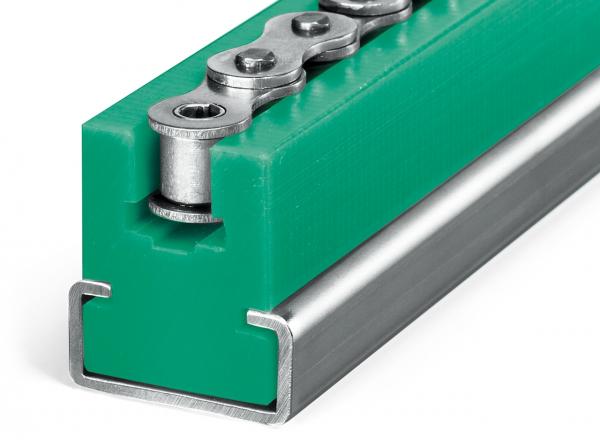

Type CK - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

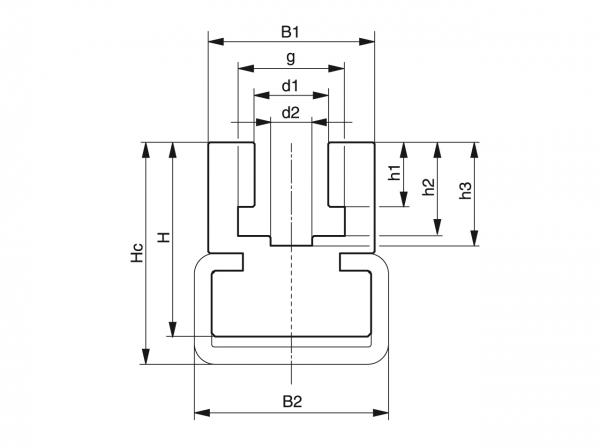

Chain no. DIN 8187 Chain dimensions in inches C profile B1 B2 H Hc d1 d2 g h1 h2 h3 Art.-No. C-Profile Article ID CAD
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351020003 221350039
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351020003 221350040
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351020005 221350041
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351020005 221350042
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351020009 221350043
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351020009 221350044
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351020012 221350045
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351020012 221350046
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351020012 221350047
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351060003 221350039
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351060003 221350040
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351060005 221350041
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351060005 221350042
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351060009 221350043
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351060009 221350044
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351060012 221350045
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351060012 221350046
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351060012 221350047
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351120003 221360031
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351120003 221360032
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351120005 221360033
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351120005 221360034
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351120009 221360035
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351120009 221360036
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351120012 221360037
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351120012 221360038
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351120012 221360039
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351090003 221350139
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351090003 221350140
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351090005 221350141
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351090005 221350142
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351090009 221350143
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351090009 221350144
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351090012 221350145
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351090012 221350146
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351090012 221350147
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351020103 221350039
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351020103 221350040
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351020105 221350041
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351020105 221350042
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351020109 221350043
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351020109 221350044
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351020112 221350045
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351020112 221350046
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351020112 221350047
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351060103 221350039
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351060103 221350040
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351060105 221350041
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351060105 221350042
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351060109 221350043
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351060109 221350044
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351060112 221350045
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351060112 221350046
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351060112 221350047
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351120103 221360031
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351120103 221360032
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351120105 221360033
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351120105 221360034
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351120109 221360035
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351120109 221360036
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351120112 221360037
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351120112 221360038
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351120112 221360039
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C3 20 20 22 25 5.3 4.5 10 4.4 7.8 9.3 351090103 221350139
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C3 25 20 27 30 8.3 4.5 13.2 7.4 11.7 13.4 351090103 221350140
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C5 30 28 30 35 10.7 6.4 16.5 8.8 14.5 16.2 351090105 221350141
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C5 35 28 35 40 12.5 7.4 19.8 11.8 18.5 20.5 351090105 221350142
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C9 40 38 45 50 16.7 9.9 26.5 14.8 23.5 25.6 351090109 221350143
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C9 50 38 50 57 20 11.9 33.1 17.8 28.7 31.2 351090109 221350144
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C12 60 60 60 65 23.3 13.9 39.8 23.7 36.9 39.6 351090112 221350145
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C12 65 60 65 70 26.7 15.9 46.4 23.7 38.9 41.7 351090112 221350146
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 32A-1 (ASA/JIS 160) 2" x 1 1/4" C12 75 60 75 80 30 17.8 53 29.7 47 50.5 351090112 221350147
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351020003 221310025
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351020003 221310026
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351020003 221310027
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351020007 221310028
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351020007 221310029
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351020007 221310030
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351020007 221310031
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351020007 221310032
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351020009 221310033
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351020009 221310034
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351020012 221310035
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351020012 221310036
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351020012 221310037
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351020012 221310038
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351060003 221310025
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351060003 221310026
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351060003 221310027
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351060007 221310028
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351060007 221310029
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351060007 221310030
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351060007 221310031
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351060007 221310032
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351060009 221310033
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351060009 221310034
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351060012 221310035
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351060012 221310036
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351060012 221310037
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351060012 221310038
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351020103 221310025
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351020103 221310026
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351020103 221310027
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351020107 221310028
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351020107 221310029
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351020107 221310030
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351020107 221310031
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351020107 221310032
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351020109 221310033
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351020109 221310034
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351020112 221310035
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351020112 221310036
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351020112 221310037
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351020112 221310038
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351060103 221310025
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351060103 221310026
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351060103 221310027
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351060107 221310028
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351060107 221310029
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351060107 221310030
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351060107 221310031
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351060107 221310032
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351060109 221310033
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351060109 221310034
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351060112 221310035
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351060112 221310036
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351060112 221310037
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351060112 221310038
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351090003 221310125
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351090003 221310126
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351090003 221310127
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351090007 221310128
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351090007 221310129
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351090007 221310130
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351090007 221310131
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351090007 221310132
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351090009 221310133
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351090009 221310134
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351090012 221310135
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351090012 221310136
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351090012 221310137
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351090012 221310138
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351090103 221310125
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351090103 221310126
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351090103 221310127
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351090107 221310128
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351090107 221310129
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351090107 221310130
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351090107 221310131
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351090107 221310132
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351090109 221310133
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351090109 221310134
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351090112 221310135
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351090112 221310136
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351090112 221310137
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351090112 221310138
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351020003 221320025
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351020003 221320026
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351020003 221320027
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351020007 221320028
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351020007 221320029
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351020007 221320030
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351020007 221320031
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351020007 221320032
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351020009 221320033
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351020009 221320034
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351020012 221320035
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351020012 221320036
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351020012 221320037
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351020012 221320038
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351060003 221320025
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351060003 221320026
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351060003 221320027
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351060007 221320028
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351060007 221320029
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351060007 221320030
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351060007 221320031
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351060007 221320032
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351060009 221320033
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351060009 221320034
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351060012 221320035
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351060012 221320036
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351060012 221320037
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351060012 221320038
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351020103 221320025
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351020103 221320026
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351020103 221320027
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351020107 221320028
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351020107 221320029
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351020107 221320030
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351020107 221320031
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351020107 221320032
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351020109 221320033
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351020109 221320034
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351020112 221320035
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351020112 221320036
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351020112 221320037
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351020112 221320038
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351060103 221320025
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351060103 221320026
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351060103 221320027
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351060107 221320028
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351060107 221320029
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351060107 221320030
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351060107 221320031
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351060107 221320032
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351060109 221320033
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351060109 221320034
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351060112 221320035
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351060112 221320036
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351060112 221320037
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351060112 221320038
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351090003 221320125
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351090003 221320126
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351090003 221320127
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351090007 221320128
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351090007 221320129
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351090007 221320130
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351090007 221320131
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351090007 221320132
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351090009 221320133
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351090009 221320134
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351090012 221320135
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351090012 221320136
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351090012 221320137
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351090012 221320138
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C3 20 20 18 21 6.6 4 9.4 3.6 7 8 351090103 221320125
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C3 20 20 18 21 6.6 4 9.4 5.5 8.9 10 351090103 221320126
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C3 20 20 18 21 8 5 10.8 4.5 8 9.5 351090103 221320127
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C7 24 28 28 32 8 5 11.8 6.2 9.8 11.3 351090107 221320128
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12.8mm 1/2" x 1/4" C7 24 28 28 32 8.8 5 12.8 6.2 10.2 11.7 351090107 221320129
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C7 24 28 28 32 8.9 5 12.8 7.4 11.5 13 351090107 221320130
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C7 24 28 28 32 10.6 6 15.4 6.2 10.2 11.6 351090107 221320131
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C7 24 28 28 32 10.6 6 15.4 9.3 13.5 14.9 351090107 221320132
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C9 32 38 35 43 12.4 7 17 11.3 15.9 17.5 351090109 221320133
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C9 40 38 45 50 16.4 10 24 16 25.7 27.7 351090109 221320134
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C12 60 60 50 55 20 11 28 18 29.5 31.7 351090112 221320135
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C12 60 60 60 65 27 16 36.6 24 38.2 41.2 351090112 221320136
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C12 70 60 75 80 30 17 40 30 47 49 351090112 221320137
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C12 70 60 75 80 31 19 44.6 30 47.3 50 351090112 221320138


Type CK - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
