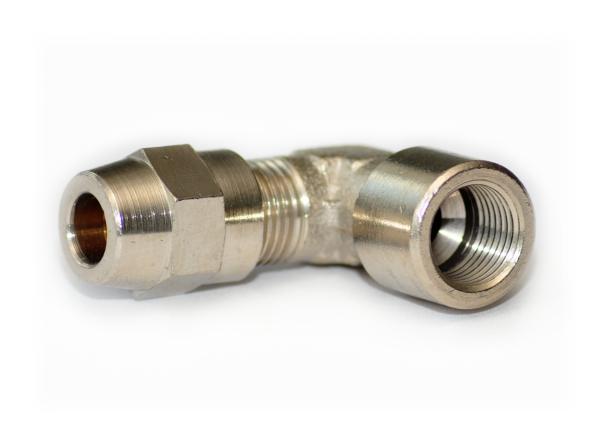

Angled screwed-on coupling for CU pipe
For the full view of this product area, please select the desktop display.
For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

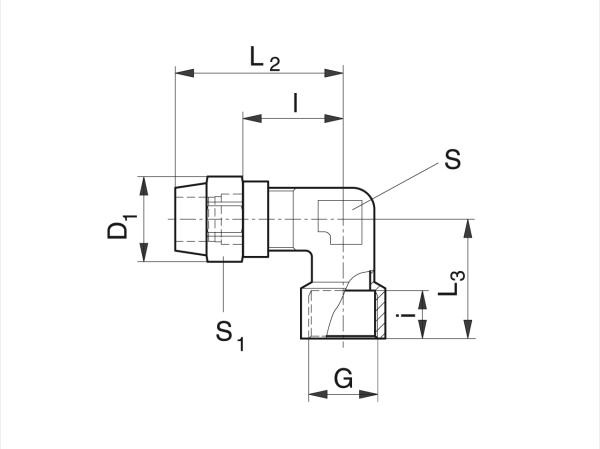

| Type | For AD pipe | G connection | L2 | L3 | i | l | D1 | S1 | S | Article ID | CAD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 849M - 6 1/8 | 6 | G 1/8" | 24 | 20 | 8 | 15 | - | 12 | 10 | 313100007 | ||
| 849M - 8 1/8 | 8 | G 1/8" | 28.5 | 20 | 8 | 17.5 | 15.5 | 13 | 10 | 313100008 |
