Angled screwed-in coupling for hose

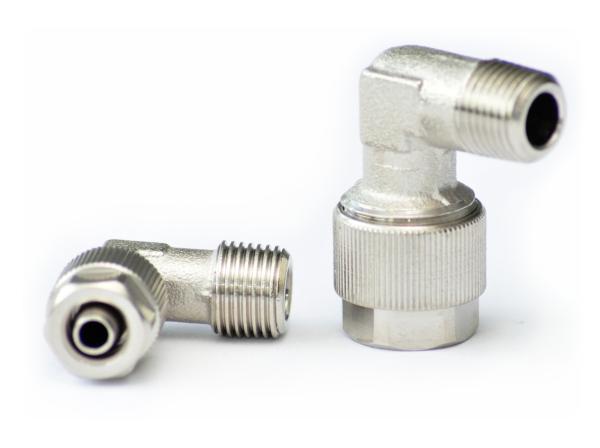

Angled screwed-in coupling for hose - Lubrication system couplings - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type For hose D/d G connection Nominal width L2 L3 i D1 S1 S Article ID CAD
150M - 6/4 - 1/8K 6/4 1/8 K 3.3 21.5 17 7.5 11.5 10 8 313200006
150M - 8/6 - 1/8 K 8/6 1/8 K 4.6 21.5 17 7.5 13.5 12 8 313200007
150M - 10/8 - 1/8 K 10/8 1/8 K 5.6 24 17 7.5 15.5 13 10 313200008

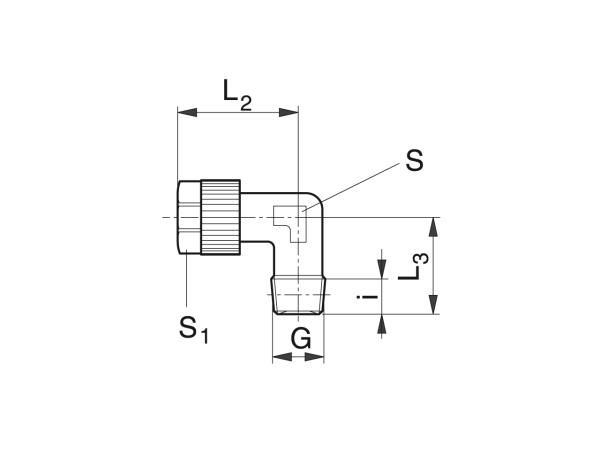

Angled screwed-in coupling for hose - Lubrication system couplings - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
